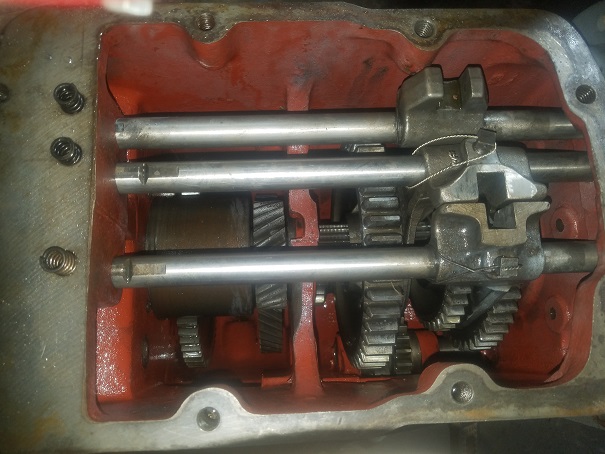

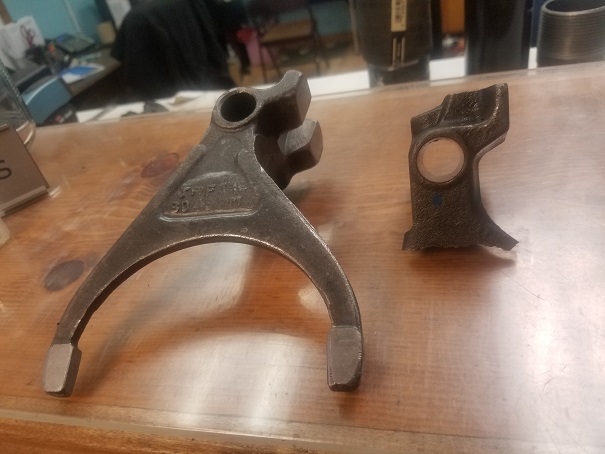

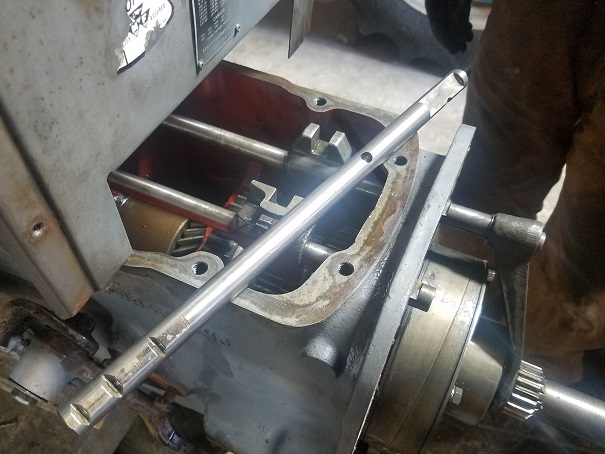

| Broken shift fork in the middle 1st/Rev | Broken fork on right. Left is New From OTPE | Shift rail | ||||||
 |
 |
 |
||||||

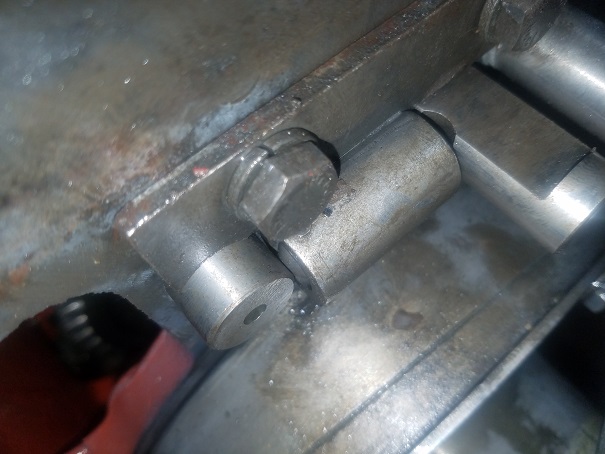

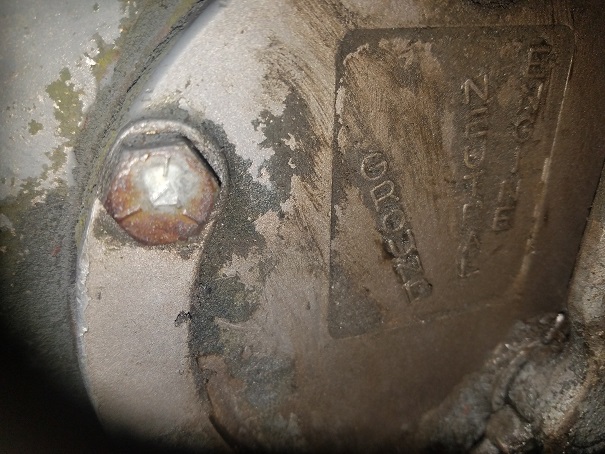

| PTO shift cover, options Ground, Neutral, Engine | Main piston hydraulic pump location in rear housing | Shift stop, prevents shifters from over/shift | ||||||
 |
 |
 |
||||||

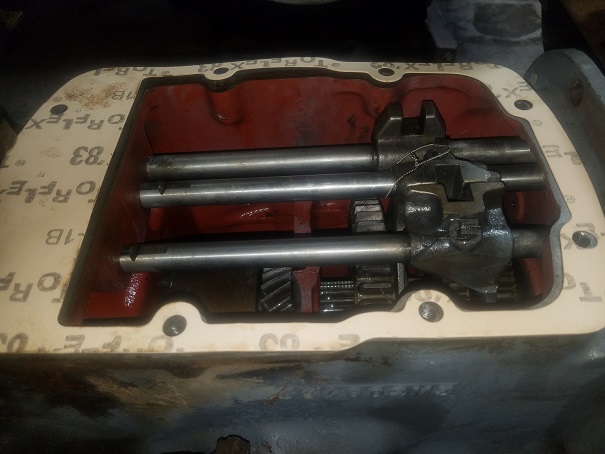

| Top view of 6 speed transmission 3 sp/w/Hi/Lo | OTPE offers a
New Aftermarket Replacement Fork. Part Number: P-180437M1 |

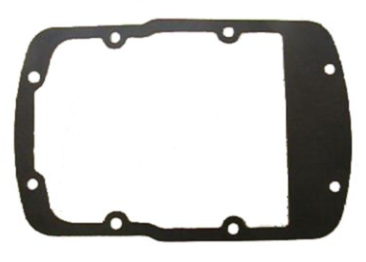

New shift cover gasket installed |
Three Speed w/high low shift 6 speed, 1st and Reverse Transmission Shift Fork
Customer said the transmission locked up when he called us. I explained it's possibly a jamed shifter fork or a broken fork.
After further inspection by the customer, he discovered the broken fork.
We split the tractor and replaced the fork with an aftermarket fork and replaced the transmission, differential, hydraulic oil, replaced a couple of power steering lines and test drove the tractor. All is good and the tractor is ready to go back to work.
(click on any photo to enlarge)
